KUHN FBP Bale Wrapper Combination

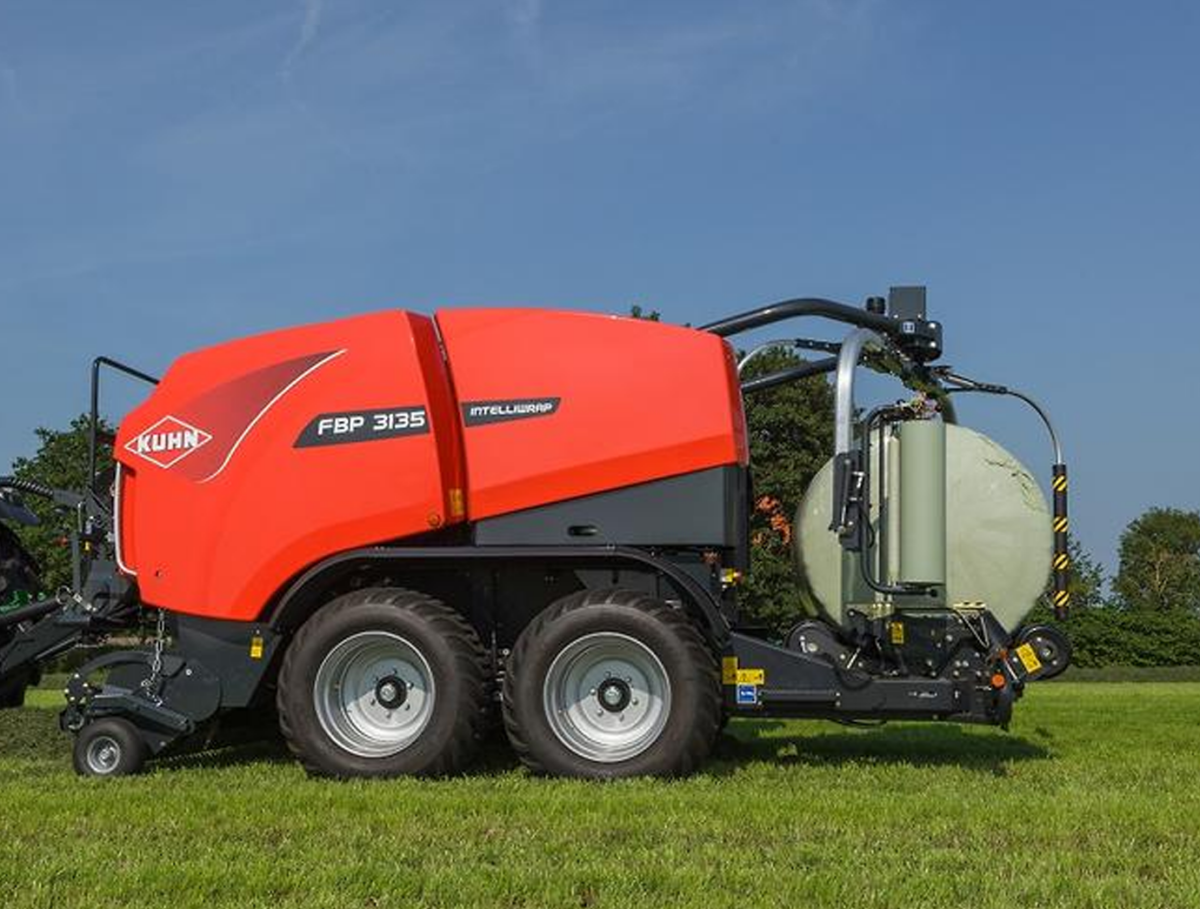

Two technologies from KUHN are combined to create the FBP 3135 fixed chamber BalePack. This baler-wrapper combination begins with a standard FB 3135 fixed chamber baler with an OPTICUT INTEGRAL ROTOR merged with an innovative wrapping system.
The KUHN FBP 3135 offers you high-quality bales at the lowest cost. The film consumption is reduced by 30% thanks to the unique patented KUHN TWIN-reel film binding system. A perfect bale seal for high-quality bale conservation is created when combining film binding with both 3D wrapping and INTELLIWRAP.
Features & Benefits
Operator comfort and maximum control are guaranteed using the PROCESS VIEW user interface on the ISOBUS controller.
- The redesigned bale chamber consists of 18 POWERTRACK rollers which generate exceptionally high densities and reliable bale rotation in all crop conditions.
- With a pickup width of 230 cm, the machine can work in all swaths and will not let you down, even in the toughest conditions.
- 50 mm double-raced bearings on the drive side main load points, guarantee trouble-free baling in heavy conditions.
Specifications
| 3161 | |
| Bale chamber dimensions (width x diameter) (cm) | 122 x 125 |
| Bale chamber | 18 POWER TRACK rollers |
| Transport width (cm) | 299 |
| Number of pick-up tine bars | 5 |
| Pick-up width (cm) | 230 |
