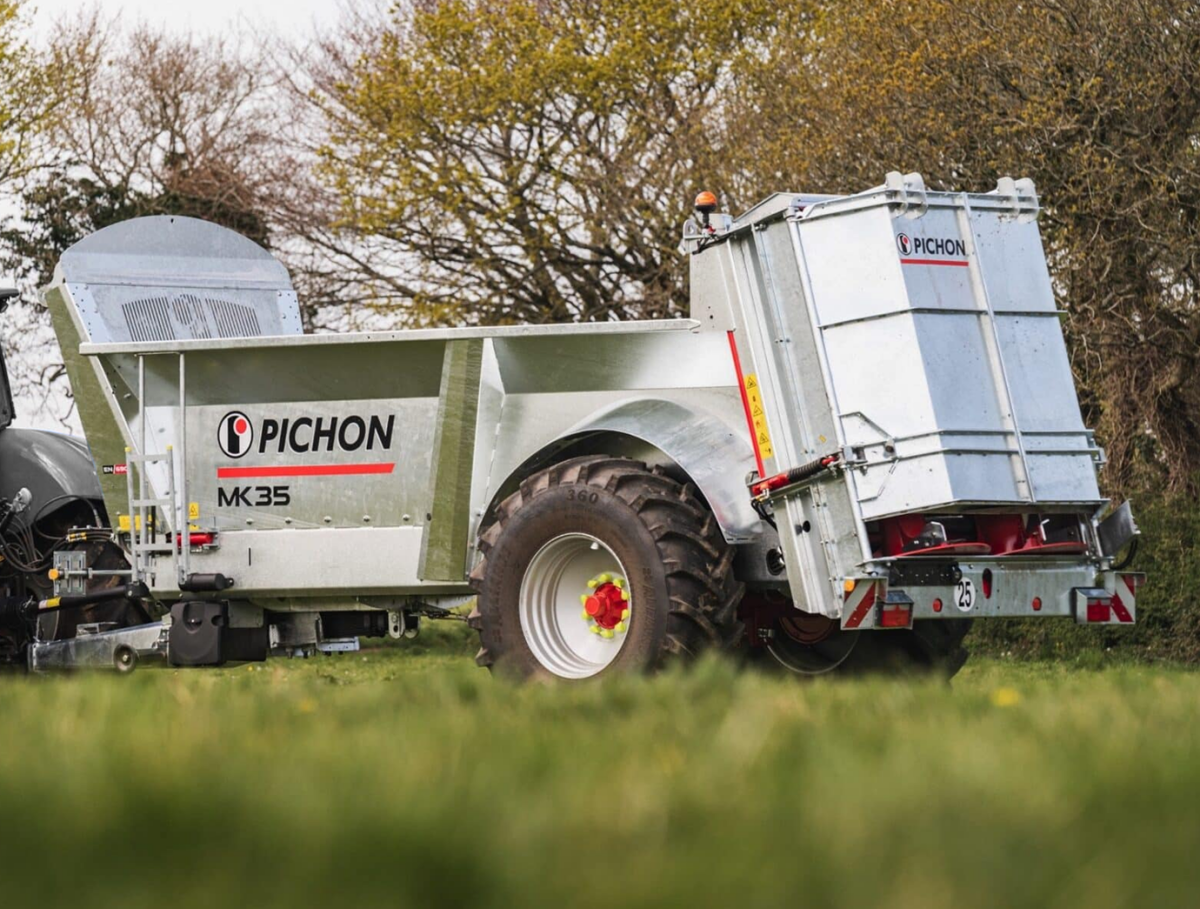

Pichon MK Muck Spreader
The MK muck spreader range has a capacity of 10 to 24m3 and offer a working width of up to 20 m. Specially designed for intensive use, this solid organic fertiliser spreader is known for its robustness and versatility. Designed to ensure high-quality spreading and high output.
Whatever the operating conditions, it will handle them effortlessly. Your MK spreader is not afraid of anything, whether on the road, in hilly terrain or on uneven ground.
Features & Benefits
100% galvanised, the MK range is renowned for its robustness. Thanks to its Heavy-Duty design and technical solutions, the MK spreader range will fulfil your spreading demands, even with the most challenging products.
- Fully galvanised body and frame
- Large diameter vertical beaters
- Centralised lubrication points
- Option of wooden or steel extensions
- Reversible and removable Hardox® blades
- One-piece beaters for drive beams
- Guillotine door for flow regulation
- Ø16 mm marine chain conveyor / 90 x 50 mm tubes
- Three spreading solutions:
- Ø885 or Ø1035 mm vertical beaters
- Spreading hood on vertical beaters
- Spreading table with horizontal spinning discs
Specifications
| MK10 | MK15 | MK20 | MK25 | MK30 | |
| Water and total volume (m3) | 6-10 | 8-11 | 7-11.5 | 9-13 | 9-14 |
| Net weight without equipment (t) | 4.90 | 5.10 | 4.90 | 5.10 | 5.50 |
| Payload on site (3/4 T ring) (t) | 12.5/13.5 | 12.5/13.5 | 12.5/13.5 | 12.5/13.5 | 18/19 |
| Beaters (mm) | 885 | 885 | 885 | 885 | 885 |
| Beaters height (mm) | 1980 | 1980 | 1980 | 1980 | 1980 |
| Number of reversible blades | 21 | 21 | 16 | 16 | 21 |
| MK35 | MK40 | MK45 | MK45T | MK50 | |
| Water and total volume (m3) | 9-14 | 11-15 | 12-16.5 | 12.1-16.5 | 14-18 |
| Net weight without equipment (t) | 6.30 | 6.50 | 6.90 | 8.90 | 7.30 |
| Payload on site (3/4 T ring) (t) | 18/19 | 18/19 | 18/19 | 24/25 | 18/19 |
| Beaters (mm) | 1035 | 1035 | 1035 | 1035 | 1035 |
| Beaters height (mm) | 2150 | 2150 | 2350 | 2350 | 2350 |
| Number of reversible blades | 23 | 23 | 26 | 26 | 26 |
| MK50T | MK55T | MK60T | |
| Water and total volume (m3) | 12-18 | 15.5-21 | 19-25 |
| Net weight without equipment (t) | 9.10 | 10.30 | 10.50 |
| Payload on site (3/4 T ring) (t) | 24/25 | 24/25 | 24/25 |
| Beaters (mm) | 1035 | 1035 | 1035 |
| Beaters height (mm) | 2350 | 2350 | 2350 |
| Number of reversible blades | 26 | 26 | 26 |
