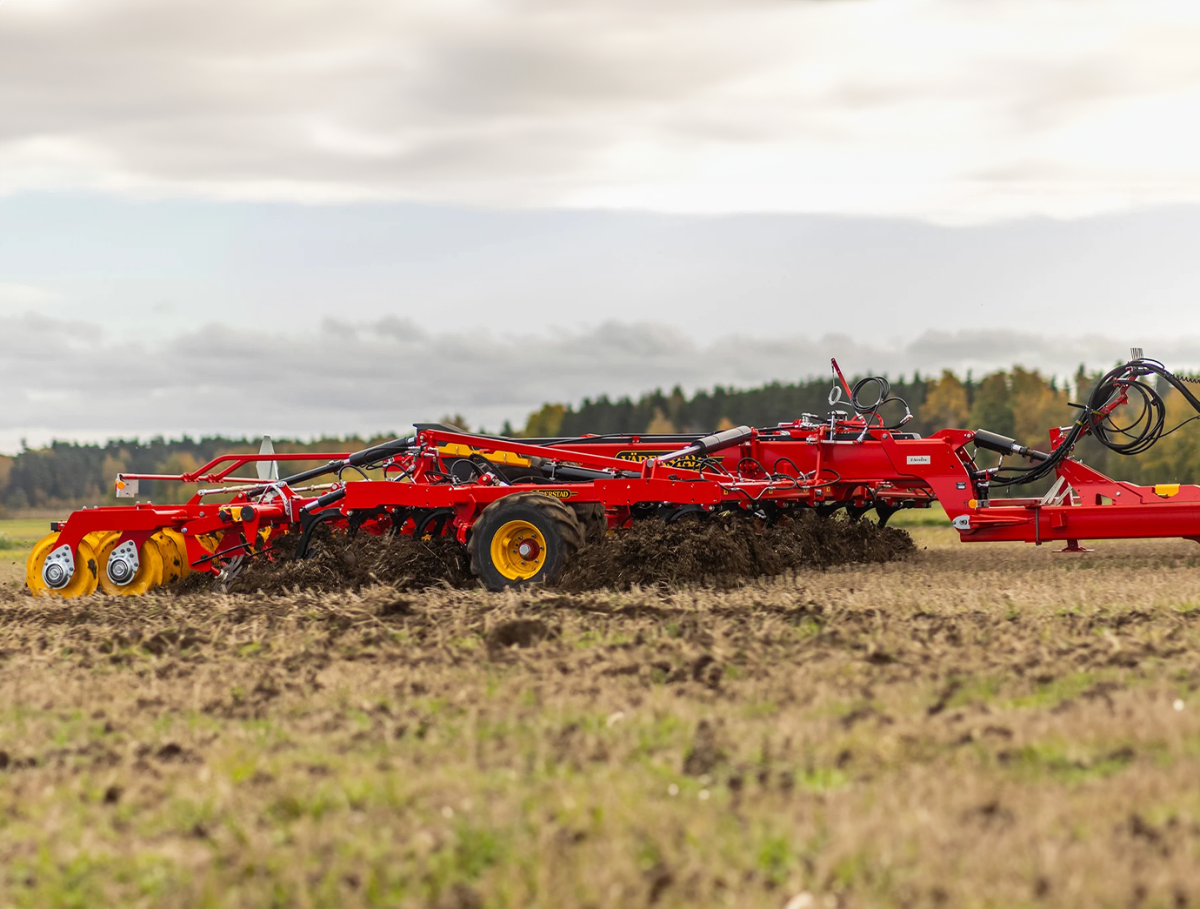

Väderstad Opus Tine Cultivator
The trailed powerful tine cultivator Opus 400-700 is equipped with robust tines, which mix and loosen the soil down to 30cm working depth. With Deep Loosening points the loosening depth increases to 40cm. The tines have a hydraulic stone release, which can be adjusted variably up to 700kg release force.
Opus is a powerful and versatile tine cultivator with an impressive capacity, able to handle large amounts of crop residues while keeping the draught requirement moderate.
Features & Benefits
The heavy tine cultivator Opus is built around a strong frame which can withstand high stresses extending the working life.
- The frame is designed for heavy usage in tough conditions. It has three axles and 27cm tine spacing, which ensures an intense cultivation and good throughflow.
- All Väderstad tine cultivators are equipped with the unique MixIn shin as standard which throws the material forwards instead of upwards.
- Using the iPad-based control system Väderstad E-Control, the operator gains full control of the machine directly from the tractor cab.
Specifications
| 400 | 500 | 600 | 700 | |
| Effective working width (m) | 3.75 | 4.75 | 5.75 | 6.75 |
| Transport width (m) | 3.0 | 3.0 | 3.0 | 3.0 |
| Number of tines | 14 | 18 | 22 | 26 |
| Tine spacing (cm) | 27 | 27 | 27 | 27 |
| Draught requirements from (hp) | 170 | 210 | 270 | 320 |
