PF Front Tank Sprayer

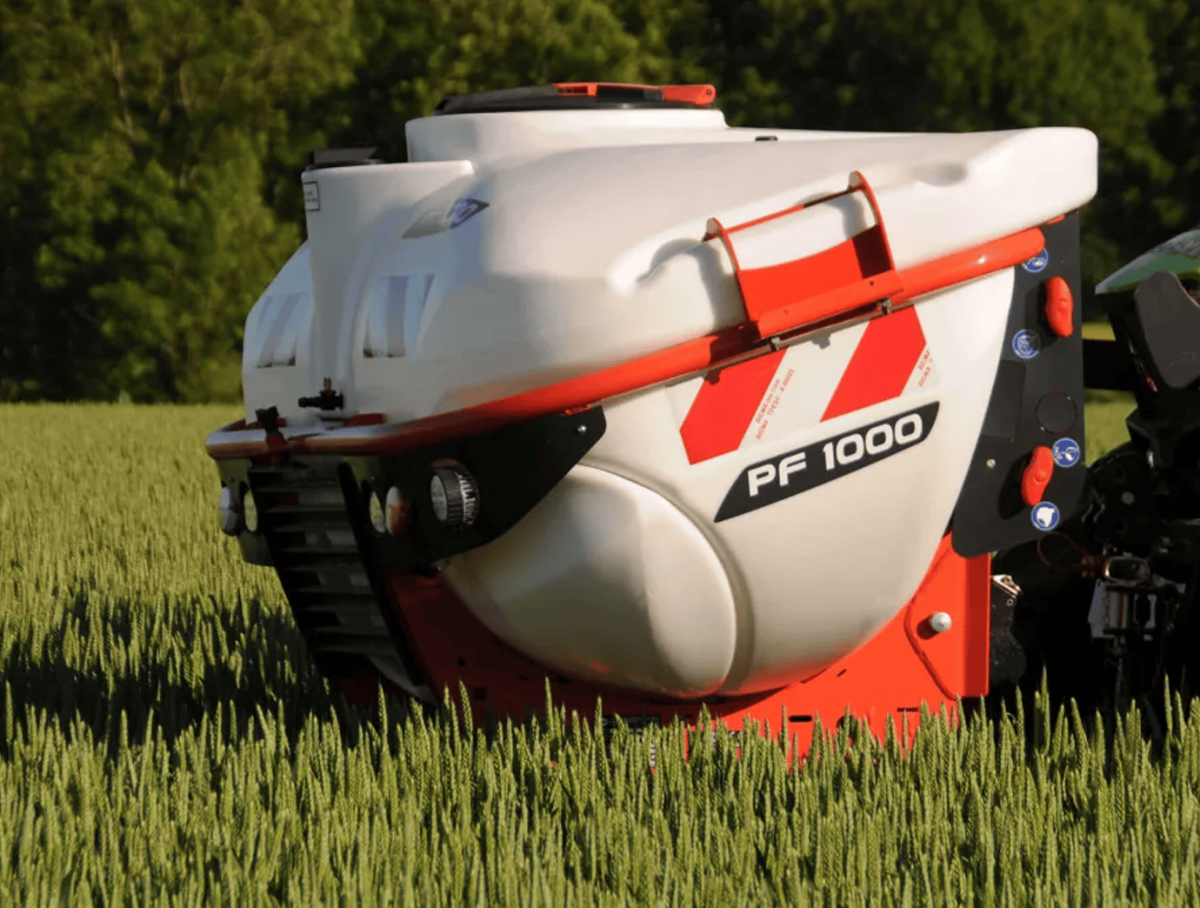

KUHN PF Front Tank Sprayer

The PF front-end sprayer is not just a simple front-mounted tank; it is a complete and independent sprayer. The combination of the PF and rear DELTIS 2 or ALTIS 2 sprayer can increase your autonomy by up to 100%.

The combination of the rear sprayer + PF front-mounted sprayer offers capacities from 2,300 to 3,500 litres, with the performance of today's tractors. This assembly represents an economical solution compared to a self-propelled sprayer with the same capacity. The 1,000 or 1,500-litre PF front-mounted sprayer offers optimum distribution of weight on the tractor to maintain excellent stability, even on sloping terrain.

Features & Benefits

The PF front-mounted sprayer is not just a simple front-mounted tank. Its design, based on a boom sprayer, ensures it is autonomous and independent. The circuit on this sprayer includes product incorporation, mixing and rinsing functionalities. It can also be combined with an autonomous fertilization or spraying kit for a localized application on a rear implement. The sprayer's sophisticated design offers the user excellent visibility at the tractor front. An easily visible, side-mounted needle gauge indicates the volume remaining in the tank.

  • The clever assembly of the PF tanks not only provides a compact outline but also centralises the filling of the tanks and makes it accessible from the front of the sprayer. When using the PF Select (base tank unit), the main tank and the rinsing tank can be added to reach a volume of 1,160 litres or 1,660 litres. The sprayer also features two storage compartments at the front.
  • As standard, the electrically driven pump (22 l/min) ensures proper mixing of the spray mixture and rinsing of the main tank at the end of spraying operations. Hydraulically driven pumps are also available and can increase the flow rate to 75 or 125 l/min. The sprayer can thus be filled autonomously and coupled to an autonomous spraying kit.
  • With the MANUSET manual control system, you're in perfect control when preparing the spray mixture. The intuitive controls are centralised on the left-hand side of the sprayer.


  PF 1000 PF 1500
Tank capacity (L) 1000 1500
Real tank capacity (L) 1160 1660
Rinsing tank capacity (L) 190 190
Pump output (L/min) 12V-22l/min – (PM 75 or 125 in option) 12V-22l/min – (PM 75 or 125 in option)
Transport height (m) 1.25 - 1.51 1.25 - 1.51

See full specs on the KUHN website. Please note: some models may not be available in New Zealand.open_in_new
