Vaderstad Spirit 600 900C Seed Drill

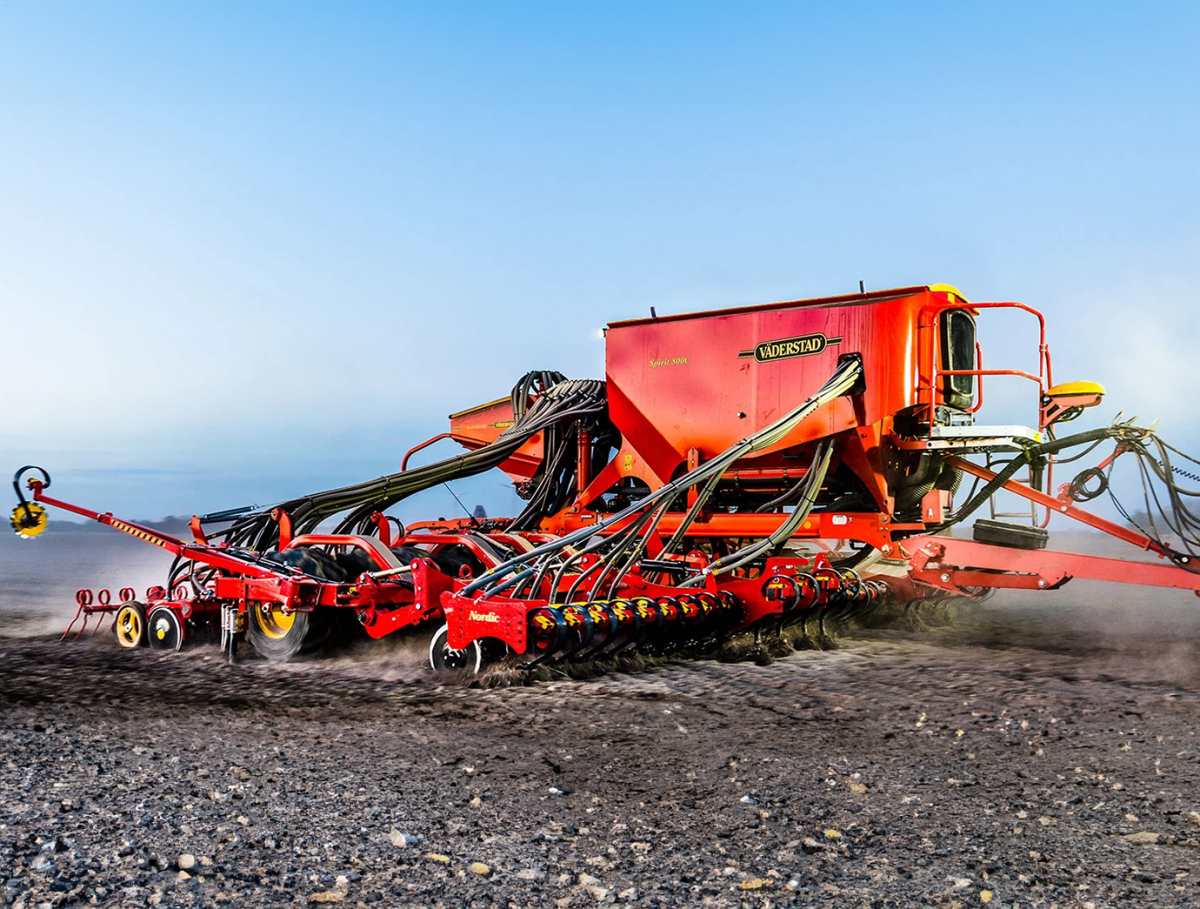

Väderstad Spirit 600-900C Seed Drill

Spirit 600-900C is a pneumatic seed drill for both seed and fertiliser, available in 6, 8 or 9 metre working widths. The 5000-litre hopper with large opening, result in fewer fills. Both the fertiliser and seed metering have impressive capacity. Spirit 600-900C is equipped with innovative solutions that increases the precision and simplifies the operations at the farm.

The pneumatic seed drill Spirit carries out levelling, seedbed preparation, reconsolidation, seeding and pressing in one pass. It is known to provide impressive precision at high working speeds on the field.

Features & Benefits

Spirit 600-900C is equipped with two Fenix II metering systems that provides a constant and reliable seed metering. The strong motor permits high seed rates at high speed. Due to the high location of the integrated fan, the dust intake is minimised, thereby increasing drilling accuracy.

  • The FIX-version have fertiliser coulters mounted in the front tool, eliminating an additional power requirement. The fertiliser is placed in 5cm wide strips at 125mm row spacing, in front of every seed row. The fertiliser depth can be adjusted from the cab according to the soil condition.
  • The InLine version places a low fertiliser rate in a separate outlet together with the seed in the seed coulter, providing the plant quick nutrient uptake. By separating the seed and fertiliser transport, these two distribution systems do not interfere with each other. This enables separate high accuracy blockage monitoring.


  600C 800C 900C
Working width (m) 6.0 8.0 9.0
Transport width (m) 3.0 3.0 3.0
Volume seed hopper (l) 5000 5000 5000
Number of seed coulters 48 64 72
Row spacing seed (mm) 125 125 125

See full specs on the Väderstad website. Please note: some models may not be available in New Zealand.open_in_new
