KUHN SW Bale Wrapper

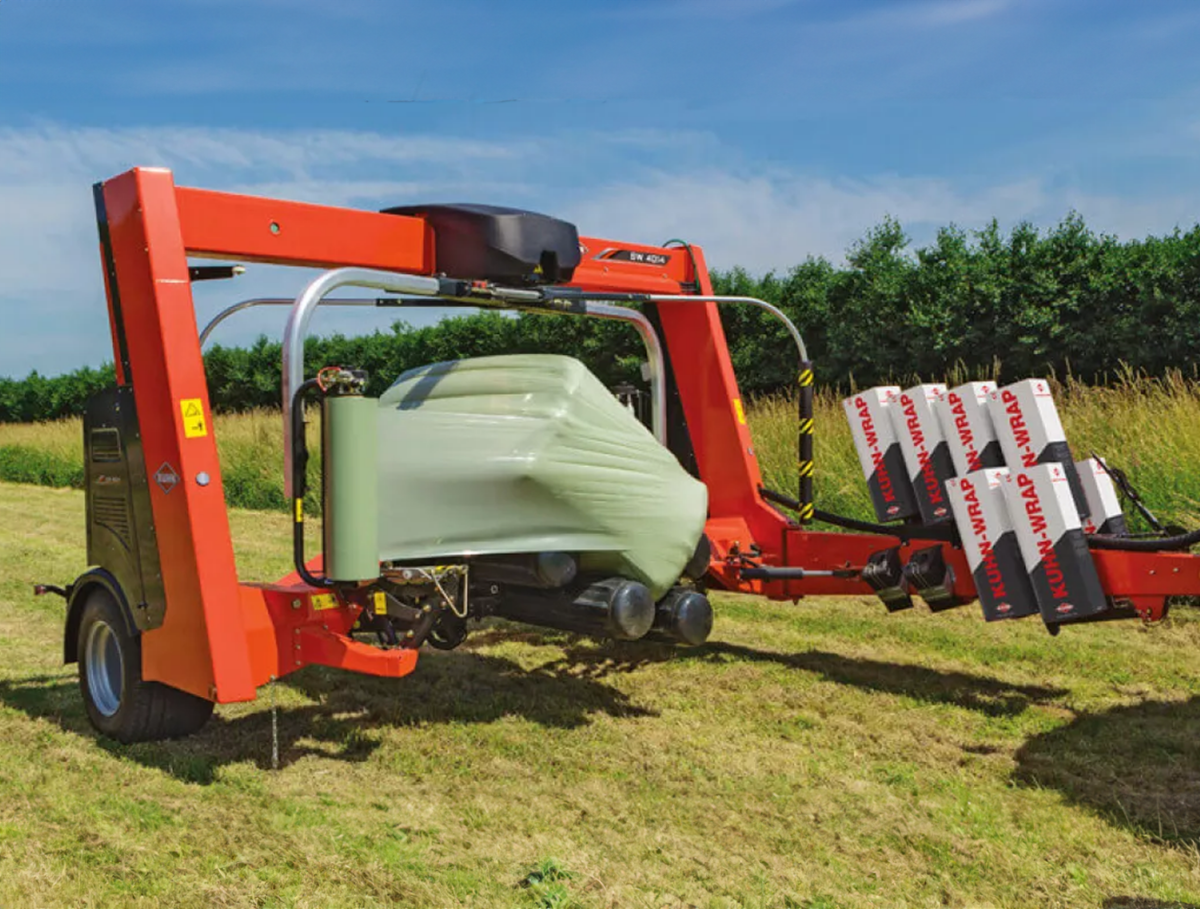

The KUHN SW 4014 is a hybrid bale wrapper that can wrap large square bales, 80x50-100 cm, up to 200 cm in length, and round bales up to 150 cm in diameter. The versatile wrapper provides fast, cost efficient and operator-friendly wrapping. The laser guided, patented AUTOLOAD function detects, loads, wraps and unloads bales automatically, creating a more ergonomic and stress-free working environment.
The SW 4014 features a solid design and a hydraulic sliding frame that allows unique drive-through operation. This provides the ability to widen the wrapper for easy bale loading, outstanding stability, and unmatched visibility of the wrapping process.
Features & Benefits
ISOBUS, combined with KUHN’s INTELLIWRAP system provides excellent distribution of the film applied around each bale with further film savings.
- The AUTOSWITCH function enables the wrapper to fold from transport position into field position with a single touch of a button on the ISOBUS terminal.
- Non-stop, fully automatic loading, wrapping and unloading of square and round bales without interference from the driver.
- The wrapper is equipped with a high-speed double satellite with a boost function to increase the speed up to 40 rpm when travelling a forward speed of 5km/hr or higher.
Specifications
| SW 4014 | |
| Round bale dimensions (width x diameter) (cm) | 120-150 x 90-140 |
| Square bale dimensions (width x diameter) (cm) | 80 x 50-100 x 200 / 120 x 60-130 x 200 |
| Max bale weight (kg) | 1500 |
| Machine width (transport) (cm) | 250 |
| Wrapping table | Electronic controlled 2 x 2 roller pair |
| Pre-stretch ratio | As standard 60% |
