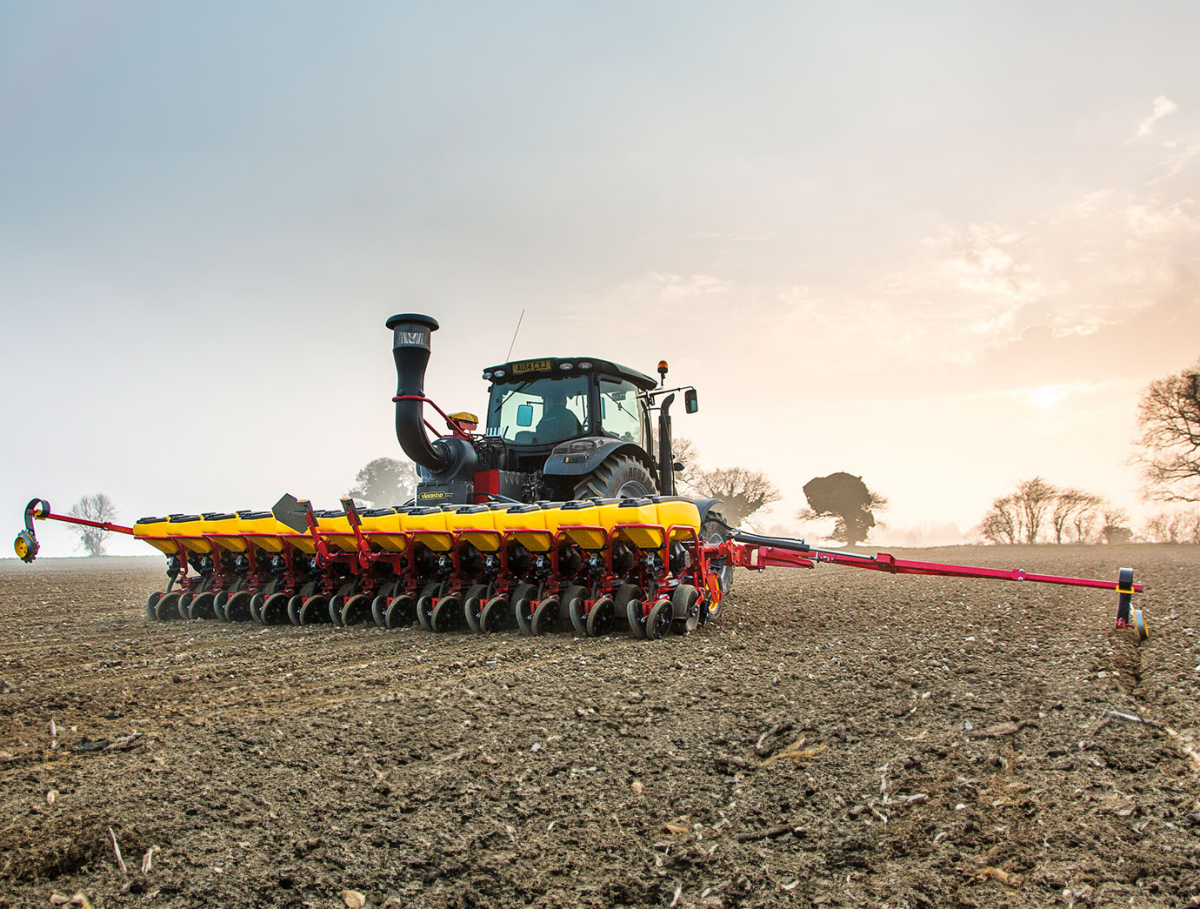

Väderstad Tempo V 6-12 Precision Planter
The mounted high-speed planter Tempo V is available with 6 to 12 row units, including odd numbers. The ability to use the same machine for multiple crops often means that two traditional planters can be replaced. This increases usage and lower the hectare costs. In combination with the front hopper FH 2200, Tempo V is able to combi-drill fertiliser at high speed.
Features & Benefits
The unique WideLining system, makes the Tempo V planter able to hydraulically adjusts the row spacing of 4 row units on the machine frame. Using WideLining, Tempo V automatically creates tire tracks for the liquid manure spreader, whilst keeping a full seeding rate over the entire forage maize field.
- Tempo V has an open frame design making it easy to adjust the row spacing to suit numerous seed types grown on the farm. The result is increased productivity and lower costs.
- Tempo V can be altered from 12 rows to 8 rows in less than one hour. A row unit trolley facilitates the work and makes storage easy.
- All Tempo V models are vertically folded to 3 metre transport width. The machine is mounted on the tractors three-point linkage, making it easy to manoeuvre in the field. In the field, this results in short turning radius on headlands and convenient transport.
Specifications
| V6 | V7 | V8 | V9 | V10 | V11 | V12 | |
| Number of rows | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Row spacing (mm) | 700 / 750 / 762 / 800 | 600 | 450 / 457 / 500 / 508 / 700 / 762 | 600 / 750 | 600 / 750 / 762 | 600 | 450 / 500 / 508 |
| Working width (m) | 4.2-4.8 | 4.2 | 3.6-6.4 | 5.4-6.8 | 6.0-7.6 | 6.6 | 5.4-6.1 |
| Transport width (m) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Volume seed hopper per row unit (l) | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
