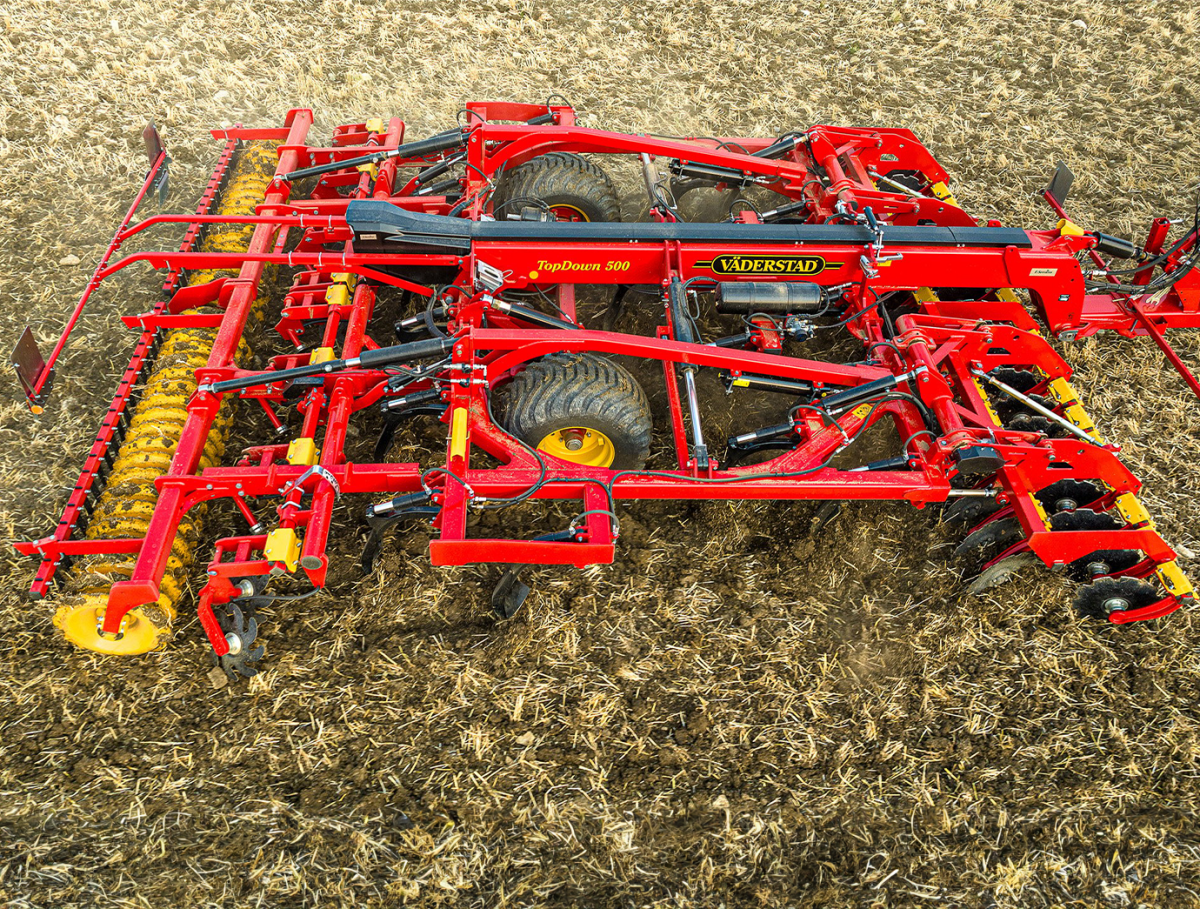

Väderstad TopDown Cultivator
TopDown 300-700 is a high intensity multipurpose cultivator, performing both a full-scale shallow cultivation and a deep cultivation in one single pass. By adapting the working result to different conditions in the field, TopDown is a highly versatile multipurpose cultivator with an unmatched performance.
TopDown reduce passes, preserves ground moisture, increases capacity, and lowers the establishment costs.
Features & Benefits
TopDown is a multipurpose cultivator, combining an intensive disc cultivator along with a robust three axle tine cultivator in the same machine.
- The high-quality discs are produced using specialist hardened Swedish V-55 steel. The discs provide intensive cutting and mixing of soil and crop residue.
- With 27cm tine spacing, TopDown intensively mixes and loosen the soil down to 30cm depth. With DeepLoosening points the depth increases to 40cm.
- All Väderstad tine cultivators are equipped with the unique MixIn shin as standard which throws the material forwards instead of upwards.
Specifications
| 300 | 400 | 500 | 600 | 700 | |
| Effective working width (m) | 2.65 | 3.75 | 4.80 | 5.75 | 6.75 |
| Transport width (m) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Number of disks | 22 | 30 | 38 | 46 | 54 |
| Number of tines | 10 | 14 | 18 | 22 | 26 |
| Draught requirements from (hp) | 150 | 200 | 250 | 300 | 250 |
