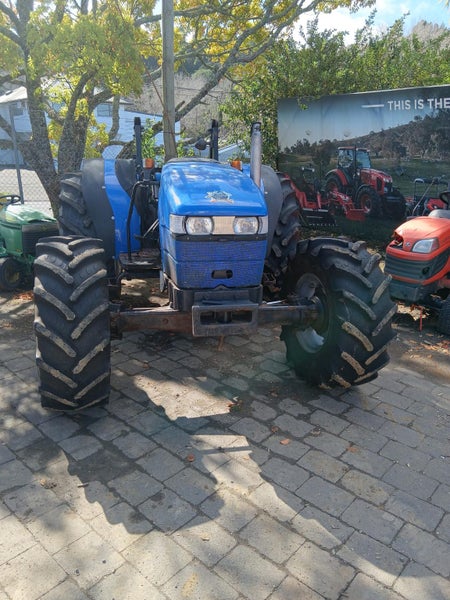

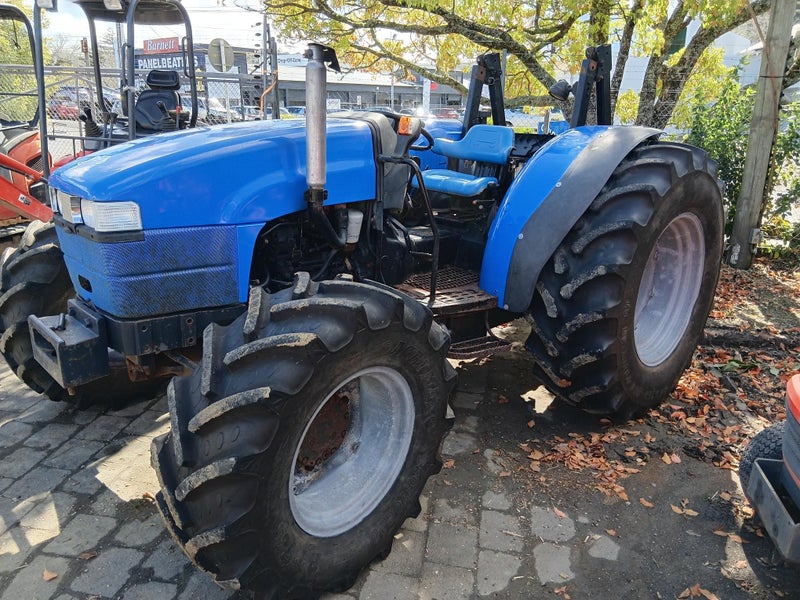

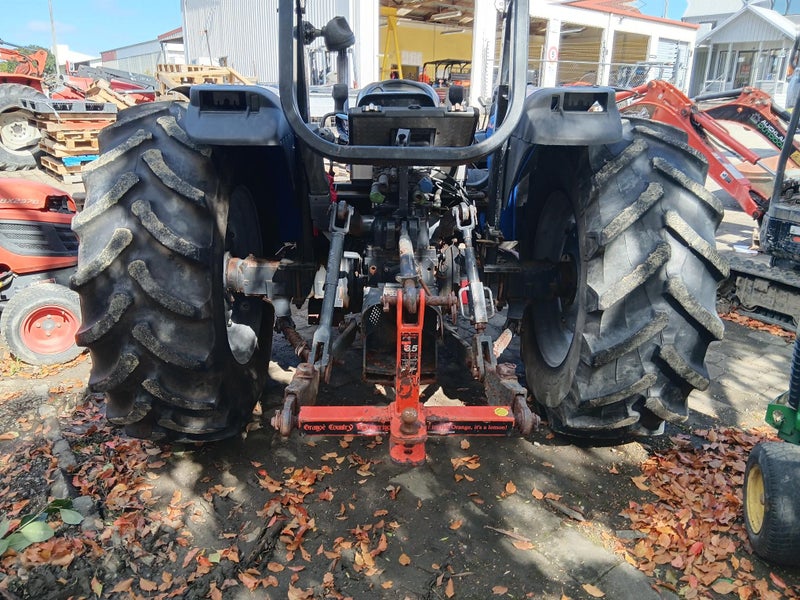

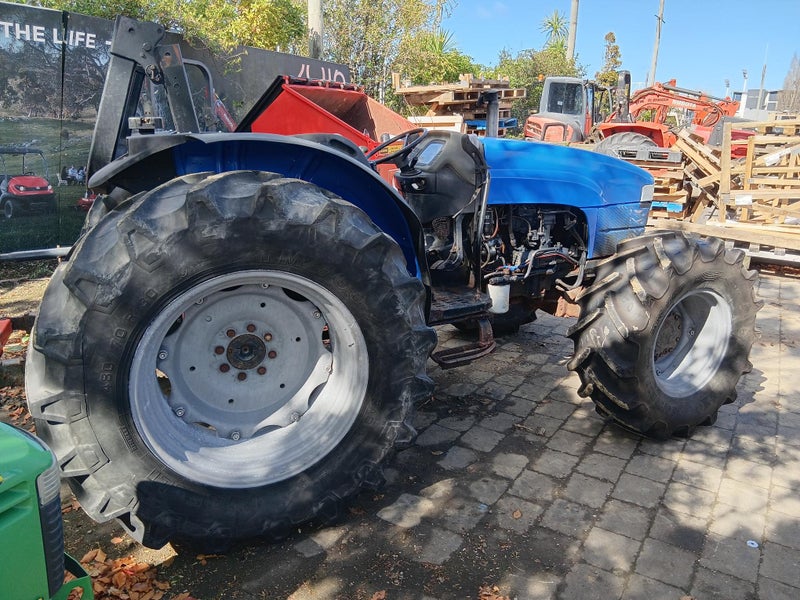

2000 New Holland TN75D Been a boat Tractor
$14,999 excl GST
Description
This has been a Boat tractor and thus Rusty but still has life in her, Sold as is. Starts fine, 4WD Works. The New Holland TN75D 4WD ROPS was a popular specialty/utility tractor in New Zealand. Most were built in Italy during the late 1990s and early 2000s.
New Holland TN75D 4WD ROPS Specifications
Engine
New Holland / Iveco diesel
4 cylinders
3.9 L (239 cu in)
Naturally aspirated
Gross engine power: 75 hp (56 kW)
PTO power: approximately 63-65 hp
Transmission
Typically 12F x 12R Synchro Shuttle
Optional creeper gears on some models
Mechanical shuttle
Drive
4WD (mechanical front-wheel drive)
Differential lock
Hydraulics
Open-centre hydraulic system
Hydraulic flow: approximately 48-52 L/min
2 or 3 rear remotes common
3-Point Linkage
Category II
Lift capacity: approximately 2,300-2,700 kg at ball ends
PTO
Independent PTO
540 rpm standard
Some fitted with 540E
Dimensions & Weight
Operating weight: approximately 3,000-3,300 kg
Wheelbase: about 2.1 m
Fuel tank: approximately 70-80 L
Tyres (Typical 4WD)
Front: 11.2R24 or similar
Rear: 16.9R30 or similar
Features Commonly Found on TN75D ROPS
Flat operator platform
Power steering
Mechanical shuttle
Wet disc brakes
Foldable ROPS frame
Available with front-end loader
Year Range
The TN75D was generally produced around 1999-2004, before being succeeded by the TN-A series
