FC 1025 F Disc Mower Conditioner

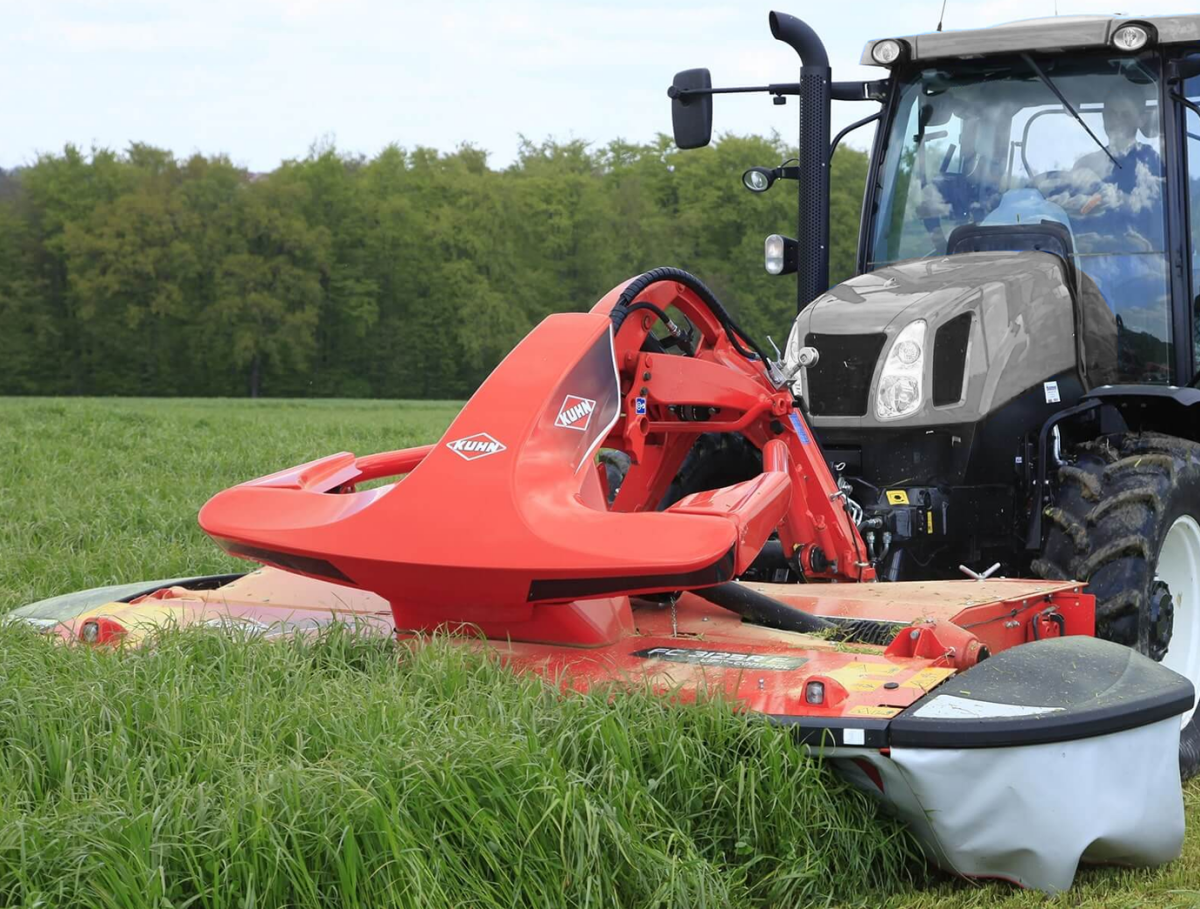

KUHN FC 1025 F Disc Mower Conditioner

First impressions count, and when you look at the FC front mower conditioners, you'll certainly be impressed. But the internal workings deserve a closer look too because these models have so many of KUHN's functional features it's difficult not to forget one.

Special frame design for perfect ground adaption, maintenance-free OPTIDISC ELITE cutter bar for an optimum cut, PROTECTADRIVE safety and FAST-FIT quick-release knife system, mowing unit with hydro-pneumatic LIFT-CONTROL suspension, easy adjustments for increased user comfort, strong and safe cat.2 coupling (no A frame) which also provides high clearance for the PTO shaft, conditioner rotor with pivoting steel fingers.

Features & Benefits

Front mowing units must be flexible in order to adapt smoothly to all terrain variations. At the same time, they are often exposed to extreme loads. KUHN's FC front mowing units are designed to cope with this.

  • Efficient and constant suspension thanks to the hydro-pneumatic LIFT-CONTROL suspension system ensures a constant cutting height, reduces the tractive effort, protects the crop and the introduction of impurities into the swath is controlled.
  • The variable disc spacing, large cutting overlap and low mowing angle provide the desired mowing quality.
  • The steel tine conditioner is very efficient in heavy, long or mature forage but also in short forage as it has a good throughput capacity.

Specifications

  3125 DF 3525 DF
Working width (m) 3.10 3.50
Transport width (m) 2.99 3.48
Number of disks 7 8
Overall swath width (m) approx. Min. 1.20 / Max. 2.00 Min. 1.20 / Max. 2.00
PTO speed (rpm) 1000 1000

See full specs on the KUHN website. Please note: some models may not be available in New Zealand.open_in_new
